How to Check Your Battery’s Health with a Voltmeter?

A dead battery can leave you stranded at the worst possible moment. The good news? Checking your battery’s health is quick and easy with a voltmeter—no mechanic required. Whether it’s your car, motorcycle, inverter, or even a backup power system, this simple test can save you time, money, and frustration.

Here’s how to do it right.

Why Voltage Matters for Battery Health

Voltage is like a battery’s "vital sign"—it tells you how much charge is left and whether the battery is functioning properly. By measuring voltage, you can:
✔ Spot a weak battery before it dies
✔ Avoid getting stranded with a no-start
✔ Determine if it needs a charge or replacement

What You’ll Need

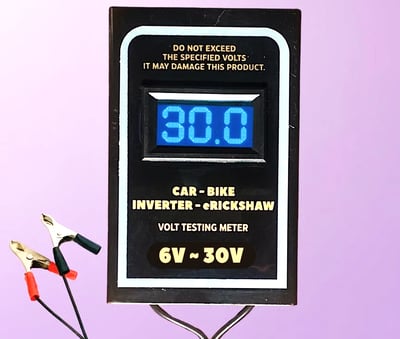

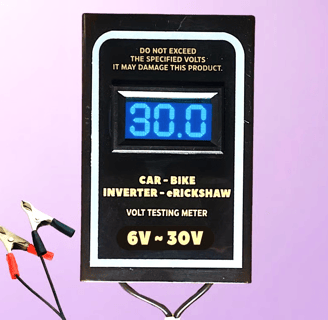

✅ Digital voltmeter (e.g. SAMCO BATTERY digital voltmeter)
✅ Your battery (car, motorcycle, inverter, etc.)
✅ Safety gloves & glasses (optional but smart)

(Don’t have a voltmeter? Some auto parts stores will test your battery for free!)

Step-by-Step: How to Test Your Battery

1. Turn Off the Engine & Let the Battery Rest

• If testing a car battery, shut off the engine and wait 10-15 minutes.

• This gives a more accurate "resting voltage" reading.

2. Set Your Voltmeter to DC Voltage

• Switch the dial to 20V DC (for 12V batteries) or 10V DC (for 6V batteries).

• If using an auto-ranging multimeter, just select DC voltage (V–).

3. Connect the Probes

• Red probe (+) → Positive terminal (usually red, marked "+")

• Black probe (–) → Negative terminal (usually black, marked "–")

• Make sure the connections are solid—corrosion can mess with readings!

4. Read the Voltage & Diagnose

Here’s what your reading means for a 12V battery:

Voltage - 12.6V – 12.8V Fully charged. Good to go!

Voltage - 12.4V ~75% charged. Still OK, but check again soon.

Voltage - 12.2V ~50% charged. Time for a recharge

Voltage - 12.0V or lower. Weak or discharged. Charge immediately or replace

Below 11.8V? The battery may be damaged or deeply discharged.

Bonus: Load Testing (For a More Accurate Check)

If you really want to test your battery’s strength, measure voltage while cranking the engine:

1. Have a helper start the car while you watch the voltmeter.

2. If voltage drops below 10V, the battery is weak and may need replacement.

(This simulates real-world demand—great for catching weak batteries that seem fine at rest!)

When to Recharge vs. Replace

• Recharge if: Voltage is 12.0V – 12.4V (use a battery charger, not just driving).

• Replace if:

  • Voltage stays below 12V after charging.

  • The battery is older than 3-5 years (typical lifespan).

  • You’ve had to jump-start it multiple times.

Pro Tips to Extend Battery Life

🔹 Clean terminals regularly (corrosion kills voltage).
🔹 Drive longer trips (short trips don’t fully recharge batteries).
🔹 Check voltage monthly if the battery is old or in extreme temps.

Final Thought

Testing your battery with a voltmeter takes less than 5 minutes—but it can save you from a costly tow truck call. Keep your battery in check, and you’ll avoid nasty surprises!
